Spot Diffuser

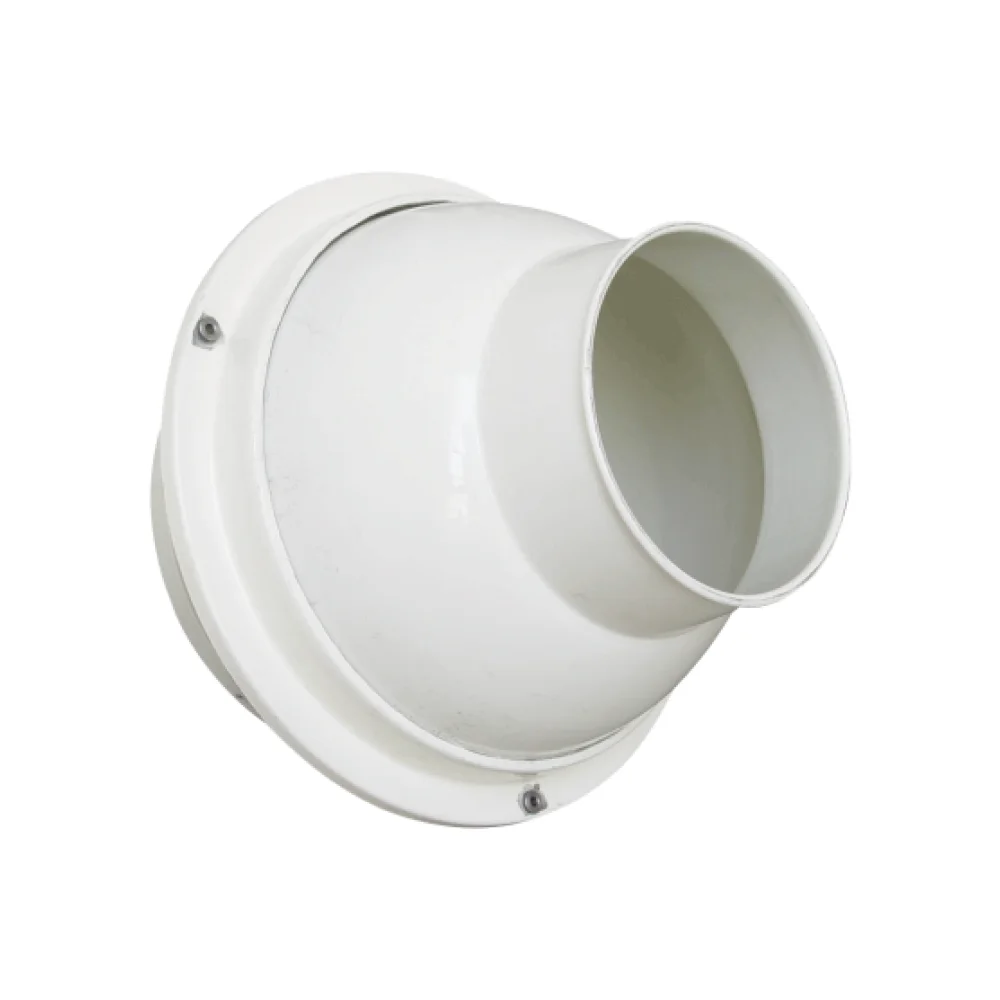

The Caryaire spherical spot diffuser ASJN904 throws relatively large quantities of air over long distances, to condition large spaces such as terminal buildings, factories, warehouses and auditoriums.
ASJN904Model
upto 30m LongThrow
+/- 36,40,42 degreesSwivel
Overview
About Spot Diffuser
The ball can be swivelled +/- 36, 40 and 42 degrees from the horizontal or vertical plane for sizes 200, 304 and 410 respectively. An optional mill finish steel butterfly damper (2 flap) can be mounted at the back of the ball and operated from the mouth of the diffuser.
Features
Key features
With Almost a Funnel Type Cross Section, It can create exceptionally long throws of upto 30m Long
Exceptional Level of Adjustability, Making it Truly Versatile Supply Air Diffuser
Core is Held with a Single Outer Frame Which can be Screwed to the Supporting Structure
All Aluminium Construction
Can be Factory Fitted onto Mounting Plate in Banks of Multiple Diffusers or Individually
Technical data
Specifications
- Model
- ASJN904
- Throw
- upto 30m Long
- Swivel
- +/- 36,40,42 degrees
- Sizes
- 200,304 & 410
- Construction
- All Aluminium Construction
- Finish
- Powder Coated in Standard Caryaire White (CW) or Caryaire Off White (CO)
