RDP

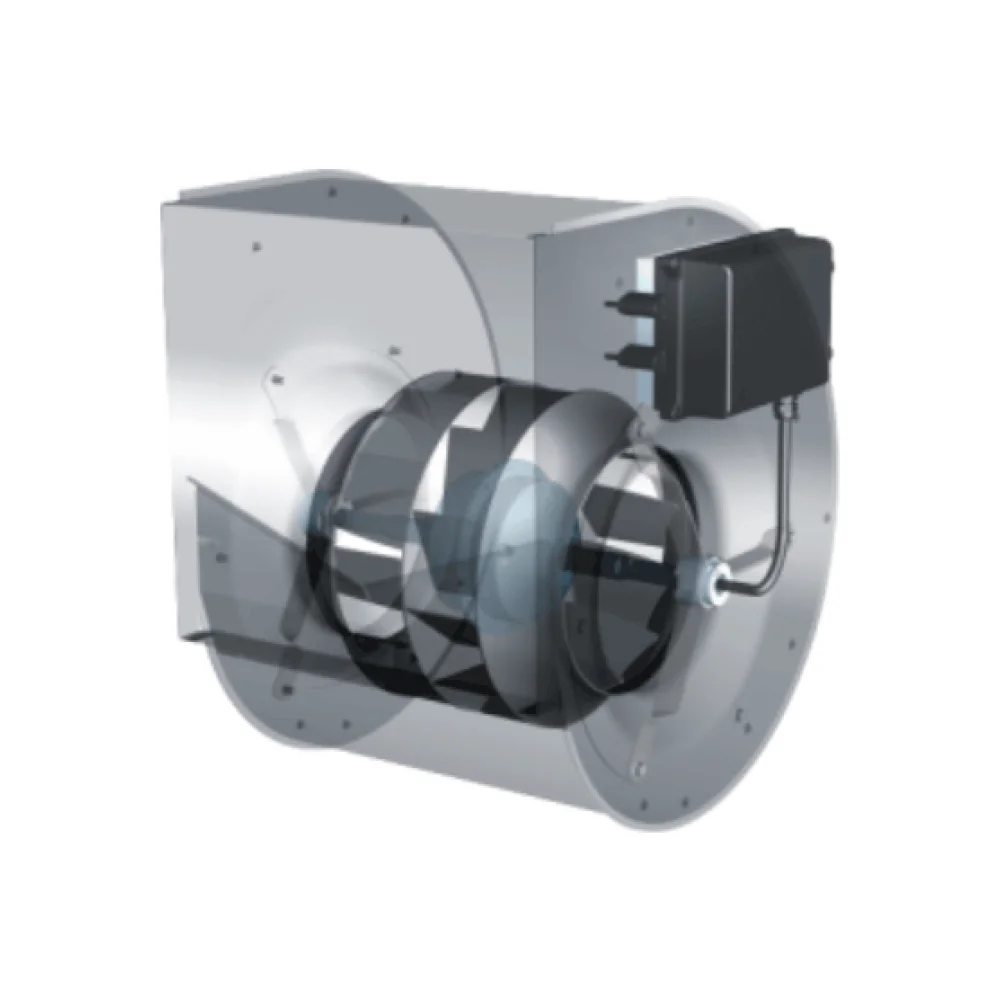

RDP is a high performance, double width double inlet (DWDI) centrifugal fan with direct drive.
315 – 500Sizes
2 kWMax. motor power
230V – 50/60 HzPower source
Overview
About RDP
Its aluminium impeller is mounted directly on a brushless, permanent magnet DC external rotor motor, so there are no transmission losses. The driver is mounted directly on the scroll for a plug and play solution that needs no further configuration, and the fan is maintenance free.
Technical data
Specifications
- Sizes
- 315 – 500
- Max. motor power
- 2 kW
- Power source
- 230V – 50/60 Hz
- Scroll
- Lap-jointed scroll made of galvanized steel (EN 10142), assembled through a standing seam. V-shaped cut-off at fan discharge.
- Impeller
- Centrifugal impeller with 11 backward inclined blades welded made of aluminium
- Motor
- brushless, permanent magnets, DC- external rotor motor, no transmission losses
- Balancing
- dynamically balanced according to DIN ISO 21940-11
- Driver
- High efficient 2 kW single-phase driver sensor-less algorithm with integrated active PFC and thermal derating protection
- Speed control
- Continuous speed variation control Drive System by signal 0 … 10 V or with Modbus RS485 compliant interface
- Protection
- IP 44
- Air performance ratings
- according to AMCA 210-07 (Fig. 12) and ISO 5801 (Fig. 69 c and par. 30.2 f)
