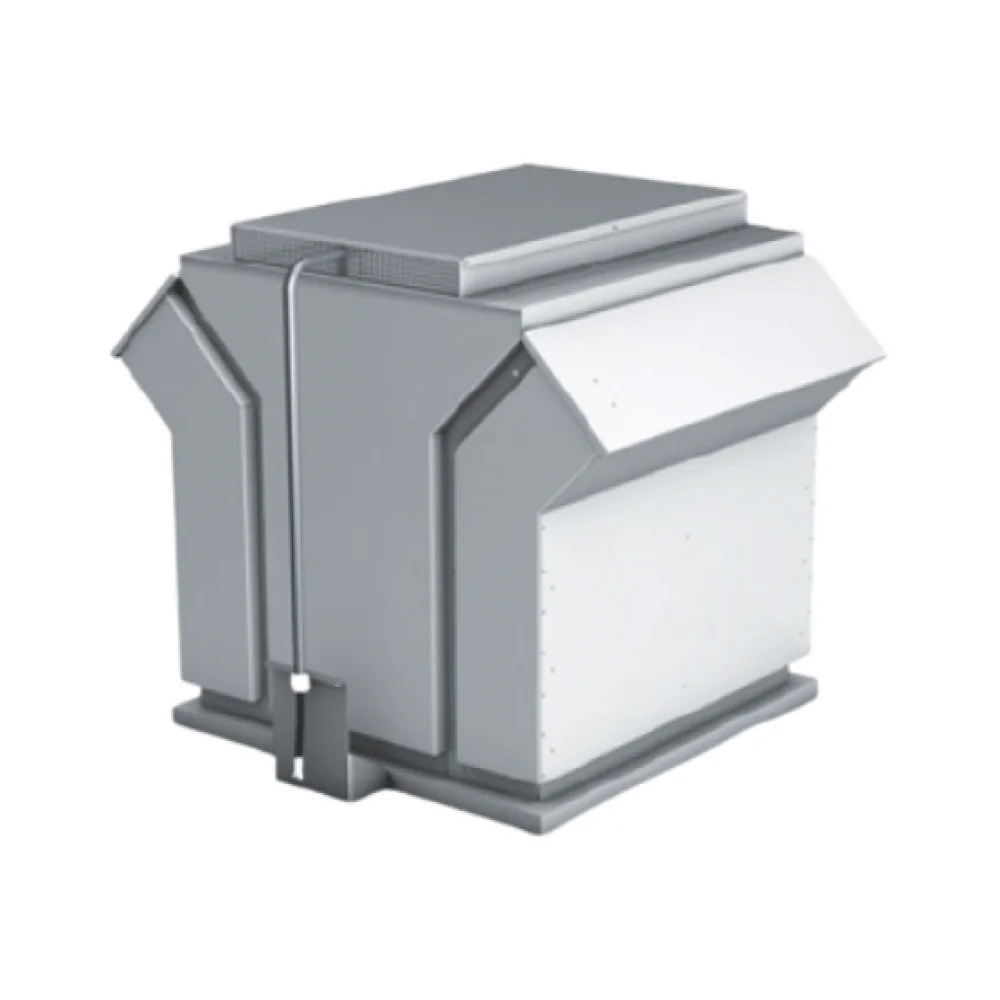

RDM
The genovent RDM is a smoke extraction solution with a host of technical advantages, maximum safety and incredible value for money.
up to a maximum of 400 °C for 120 minRDM 56
up to a maximum of 600 °C for 120 minRDM 57
CE certificationCertification
Features
Technical advantages
During smoke extraction, the RDM 56 conveys media up to a maximum of 400 °C for 120 min. and the RDM 57 up to a maximum of 600 °C for 120 min.
The attractively designed, self-enclosed casing made of non-corrosive aluminium is a striking addition to any roof
The powerful add-on motors are separated from the airflow and cooled by the outside air
The blades on the back of the impellers also support the motor cooling
The outlet flap which comes as standard stops rain and snow from getting in and prevents heat loss. This protection from freezing means the fan can be mounted anywhere, even above unheated rooms. Normal fans without outlet flaps can only be fitted above heated rooms
The smoke extract fans RDM are designed to respond to the snow load class requirements SL 1000 according to DIN EN 1201-3
Easily removable side pieces on the casing, the swing-out middle section and an easy-access base plate guarantee safe and easy installation, inspection and maintenance
A wide range of accessories and a specially designed system of electrical components round off the whole system.
Technical data
Specifications
- RDM 56
- up to a maximum of 400 °C for 120 min
- RDM 57
- up to a maximum of 600 °C for 120 min
- Certification
- CE certification
- Casing
- non-corrosive aluminium
- Snow load class
- SL 1000 according to DIN EN 1201-3
