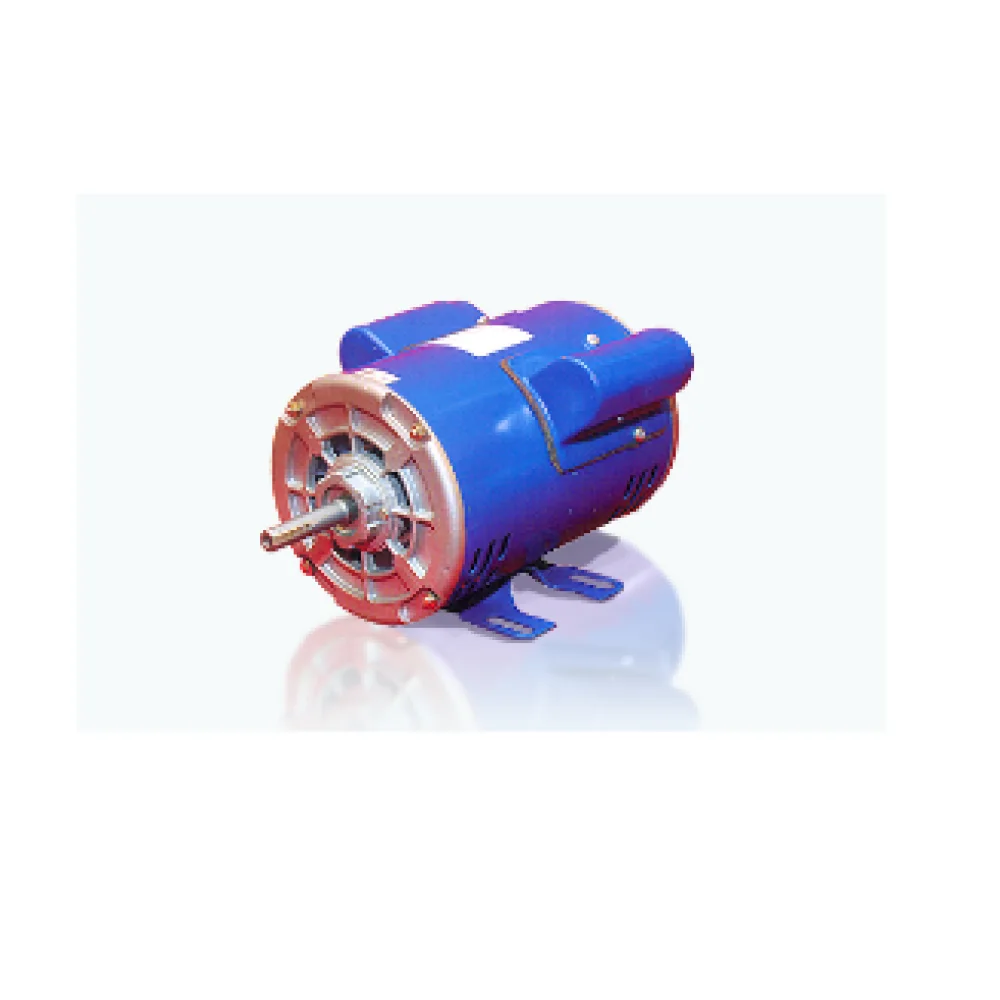

NEMA B42/B48 Frame Motors

General purpose FHP (fractional horse power) and air handling application motors in NEMA B42/B48 frame, designed for high efficiency and reliability.

NEMA B42/B48Frame

FHP (Fractional Horse Power)Type

Certificate

Overview

About NEMA B42/B48 Frame Motors

Developed with global customer requirements in mind, these motors are offered with different mounting arrangements (lug, bracket, stud, end-shield pad, resilient ring and resilient base) and with open or closed enclosures. Thermal protection is optional and is provided against requirement.

Features

Key features

Powder coated rolled sheet metal body for corrosion resistance.

DP/ TE(AOM) enclosure with improved ventilation

Capacitor Start Capacitor Run continuous duty designs available

Special Design for customized applications

Compact design.

Reversible Direction of rotation (on request)

Thermal protection available (on request)

Technical data

Specifications

Frame: NEMA B42/B48
Type: FHP (Fractional Horse Power)
Mounting: Lug, Bracket, Stud, End-Shield Pad, Resilient Ring, Resilient Base
Available range: 75 W to 370 W 2,4 & 6 Pole
Applications: Juicer, Bench Drilling Machine, Ice Cream Vending Machine, Wet Grinder, Winnowing Fan
Standard: IS, NEMA
