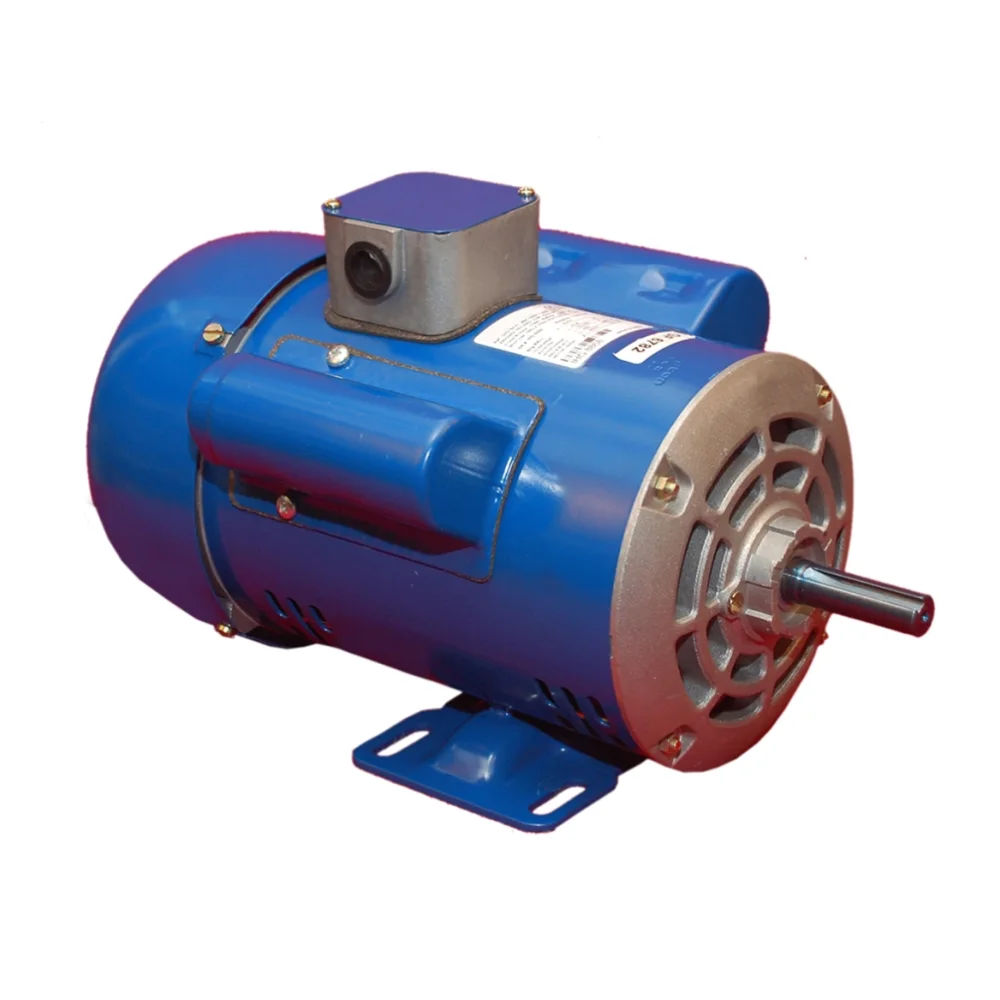

NEMA 56 Frame Motors

B56 frame motors are general purpose motors in an MS rolled, powder coated body.

NEMA 56 or IEC(Metric) 90 frameFrame

foot and flange mounting arrangementsMounting

Certificate

Overview

About NEMA 56 Frame Motors

They are available in NEMA 56 or IEC (metric) 90 frame, with foot and flange mounting arrangements. Thermal protection is optional, and a UL approved range is also available.

Features

Key features

Compact and reliable designs suited for various applications

Powder coated rolled sheet metal body for corrosion resistance

TE, TEFC, DP and DPFC enclosures available

Foot, flange, face as per IEC & NEMA standard available

Customized mounting arrangements on request

Highly reliable switching mechanism

B class and F class insulation designs available

Wide voltage designs available

Energy efficient designs

Sealed Ball Bearings

Technical data

Specifications

Frame: NEMA 56 or IEC(Metric) 90 frame
Mounting: foot and flange mounting arrangements
Body: MS Rolled powder coated body construction
Available range: 187 W to 1500 W 4 Pole / 187 W to 2250 W 2 Pole / 187 W to 750 W 6 Pole / 187 W to 750 W 8 Pole
Applications: Wet Grinder, Surgical Pump, Paint Mixer, Vacuum Pump, Needle Vibrator, Lawn Mower, etc
Standard: IEC, IS, NEMA, OTHER
