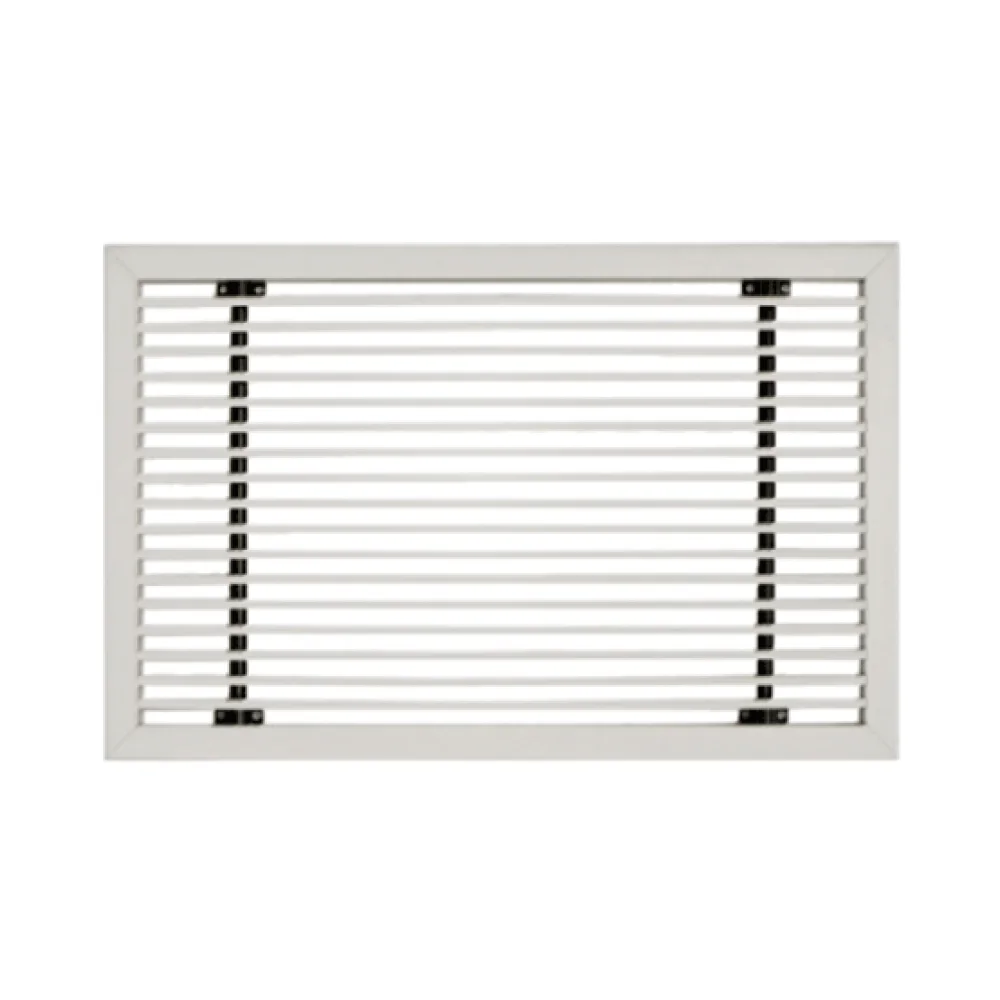

Fixed Bar Grill
Caryaire fixed bar grills are ideal for supply and return air, in both cooling and heating, in high side wall or ceiling applications.
Overview
About Fixed Bar Grill
They are available in 19 different cores with a choice of frames, and an optional opposed blade damper can be supplied in aluminium or steel construction. Ideal for continuous lengths, each single piece is at most 1800mm; longer lengths are supplied in multiple sections that can be aligned on site with the optional alignment strips. All deflection bars are fixed and run parallel to the long dimension. Bars, frames and spacers are all extruded aluminium.
Features
Key features
0, 15 and 30 Degree Deflections in Multiple Blade Styles
Spacings Available in 13 and 17mm
Standard and Broad Frame Available
Concealed Fixing
Maximum Single Grill Section of 1800mm Long
Ideal for Long Continuous Lengths, Field Aligned
Technical data
Available models
- G0133
- 3mm Louver, 13mm spacing, Zero Degree Deflection.
- G1133
- 3mm Louver, 13mm spacing, Fifteen Degree Deflection.
- G2133
- 3mm Louver, 13mm spacing, Fifteen Degree Deflection – 2 way
- G0134
- 4mm Louver, 13mm spacing, Zero Degree Deflection.
- G1134
- 4mm Louver, 13mm spacing, Fifteen Degree Deflection.
- G2134
- 4mm Louver, 13mm spacing, Fifteen Degree Deflection – 2 way
- G0174
- 4mm Louver, 17mm spacing, Zero Degree Deflection.
- G1174
- 4mm Louver, 17mm spacing, Fifteen Degree Deflection.
- G2174
- 4mm Louver, 17mm spacing, Fifteen Degree Deflection – 2 way
- G0135
- 5mm Louver, 13mm spacing, Zero Degree Deflection.
- G1135
- 5mm Louver, 13mm spacing, Fifteen Degree Deflection
- G2135
- 5mm Louver, 13mm spacing, Fifteen Degree Deflection – 2 way
- G3135
- 5mm Louver, 13mm spacing, Thirty Degree Deflection
- G4135
- 5mm Louver, 13mm spacing, Thirty Degree Deflection – 2 way
- G0175
- 5mm Louver, 17mm spacing, Zero Degree Deflection.
- G1175
- 5mm Louver, 17mm spacing, Fifteen Degree Deflection.
- G2175
- 5mm Louver, 17mm spacing, Fifteen Degree Deflection – 2 way
- G3175
- 5mm Louver, 17mm spacing, Thirty Degree Deflection.
- G4175
- 5mm Louver, 17mm spacing, Thirty Degree Deflection – 2 way
