GI cabinet with spigots
High-quality GI cabinet with inlet and outlet spigots and mounting brackets.
3D model is an illustration for reference. Actual construction, inlet and outlet arrangement may vary by model; see the product photo and brochure.

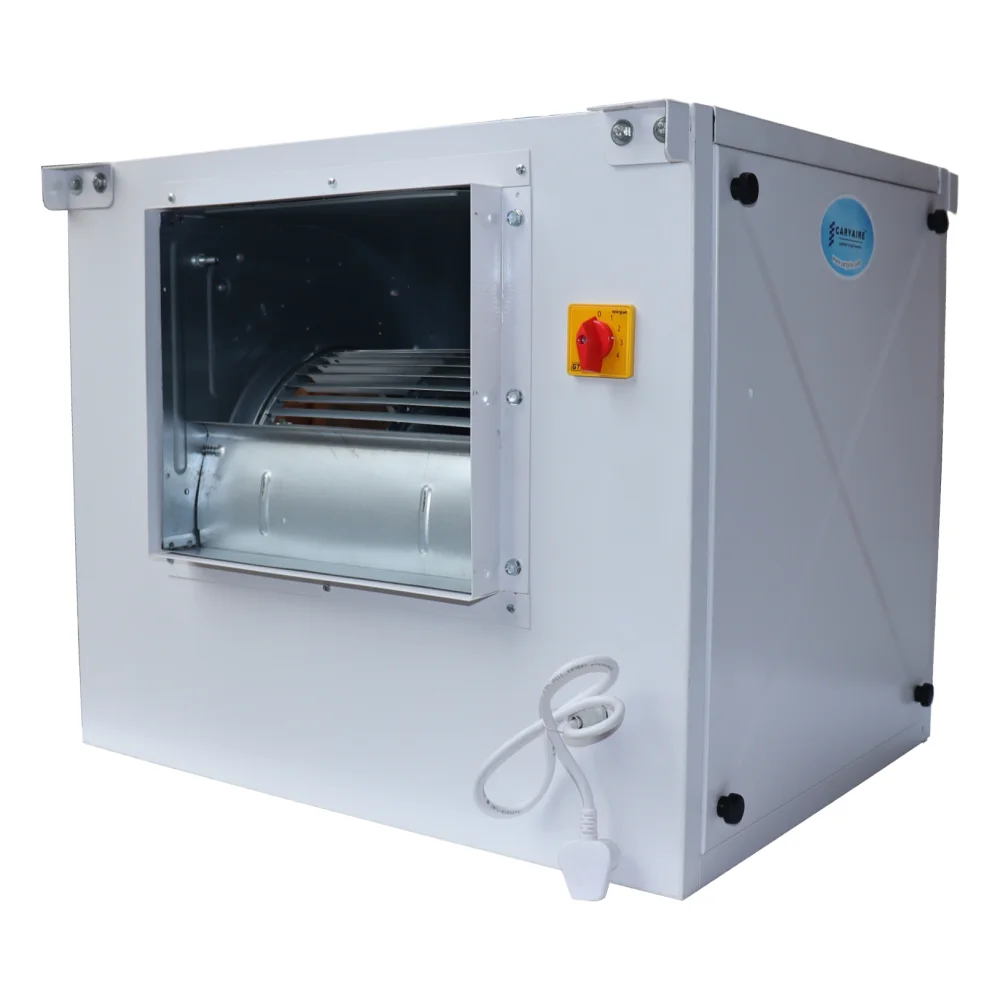

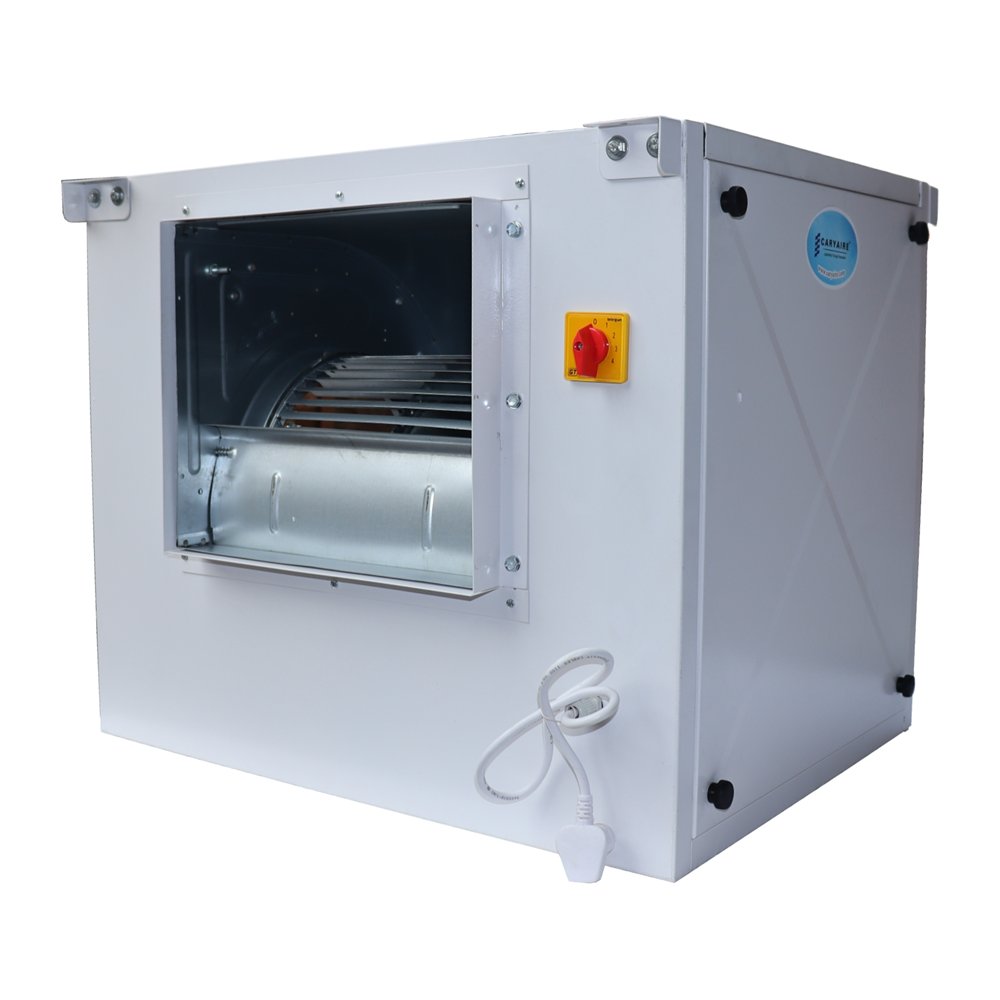

CDIF Direct Drive Cabinet Fans
Cabinet inline fans for ventilation and exhaust applications, for air volumes ranging from 1000 CFM to 6800 CFM, powered by a direct driven fan. The standard series (CDIF) has a single skin cabinet; the insulated series (CDIF-IS) is supplied with high-grade acoustic egg-crate insulation, internally lined, for low noise applications.
1000–6800CFM air volume
DIDWimpeller in GI scroll
Directdrive, multi-speed
Series
Standard series with a single skin cabinet.
Supplied with high-grade acoustic egg-crate insulation, internally lined, for low noise applications.
Features
Key features.
Access panels
Access panels for easy maintenance and inspections.
Multi-speed motor
Multi-speed motors with speed regulator.
DIDW impeller
High-efficiency DIDW (double inlet, double width) impeller with GI scroll.
Induction motor
Single phase, squirrel cage induction motors with long life bearings.
Filter-ready inlet
Inlet is equipped with a standard provision for slide-in filters.
Specifications
At a glance.
| Air volume | 1000 to 6800 CFM |
|---|---|
| Application | Ventilation and exhaust |
| Impeller | DIDW, direct driven, in a GI scroll |
| Motor | Single phase, squirrel cage induction, multi-speed with regulator, long-life bearings |
| Cabinet | GI, single skin (CDIF)GI, egg-crate acoustic lining (CDIF-IS) |
| Connections | Inlet and outlet spigots |
| Service | Access panels for maintenance |
| Inlet | Provision for slide-in filters |
| Mounting | Mounting brackets |
For sizes and performance data for your application, please contact our team.
Options
Make it yours.
- EC motors
- Powder coated GI cabinet
- Insulation with egg-crate acoustic lining
- EU4 inlet filters
Ventilation
View all in Ventilation products
More ways to keep air moving.
Caryaire
Circular Inline Fans
Caryaire centrifugal inline fans ventilate residential, commercial and industrial spaces such as toilets, bathrooms, cafeterias and laundry rooms in homes, hotels, apartments and offices.
Caryaire

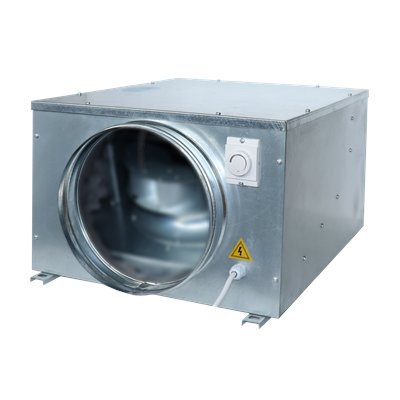

Rectangular Insulated Inline Fan
Rectangular insulated fans (RIF) suit intake or exhaust ventilation where noise level is the main selection criterion or where mounting space is restricted.
Caryaire

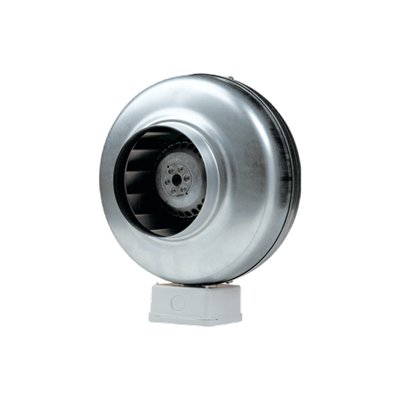

Circular Inline Fan – EC
Caryaire’s range of EC circular inline fans includes 200mm and 315mm diameter fans.
Caryaire

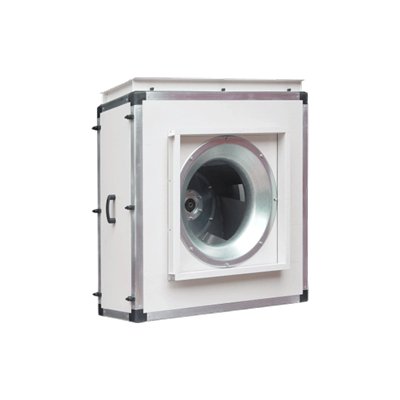

Kitchen Exhaust Fan
